7.6. Extended Data Recovery

Top  Previous  Next


Key Features.

· Provides a direct access to raw disk data using a special (kernel-mode) driver, bypassing the restrictions imposed by Windows Vista / 7 / 8 / 8.1 / 10 under standard user (non-administrative) account.
· Recovers pictures, movies and other types of files from flash memory cards, such as SmartMedia, Memory Stick, CompactFlash, xD Picture Card and other flash memory devices (e.g. pen drives, thumb drives).
· Retrieves the lost data on Hard Disk Drives (HDD), Solid-State Drives (SSD), floppy disks and other types of Windows disks/drives.
· Creates disk image files (byte-to-byte copy) of entire drive, logical disk or selected partition.
· Restores accidently deleted files (so-called "Undelete" option), including the photos deleted by digital cameras.
· Finds and retrieves files on the quick-formatted flash media.
· Recovers lost audio files on the flash memory built into voice recorders, such as Sony, Olympus, Ritmix, etc.
· Can be used to recover a video files from Hard Disks Drives built into camcorders.
· Allows to see the found images even in the free trial version with the help of View Image option.
· Supports NTFS / FAT12 / FAT16 / FAT32 / exFAT / Ext2 / Ext3 / UDF file systems.
· Integrated into easy-to-use CDRoller shell.
· Writes recovered files onto a new CD, DVD or Blu-Ray discs without leaving CDRoller.
· Works under Windows 2000/XP/2003/Vista/7/8/8.1/10 operating system.


How to get started.

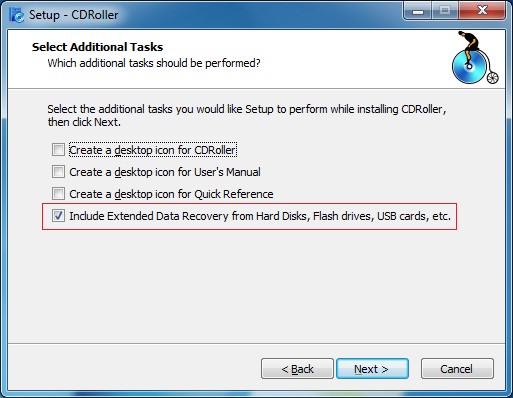

1. When installing CDRoller, check the Include Extended Data Recovery ... box under Select Additional Tasks window. Further, this will popup User Account Control under Windows Vista/7/8/8.1/10 if you don't run CDRoller as admin by default.

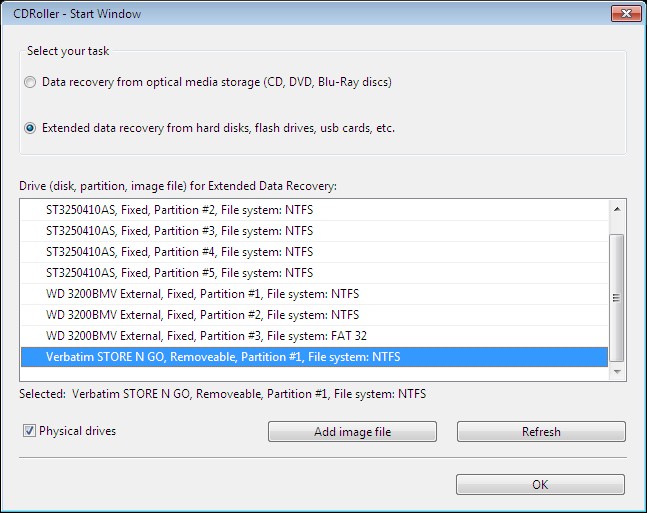

2. Simply start CDRoller and select the drive for Extended Data Recovery under CDRoller - Start Window. Click the OK button.

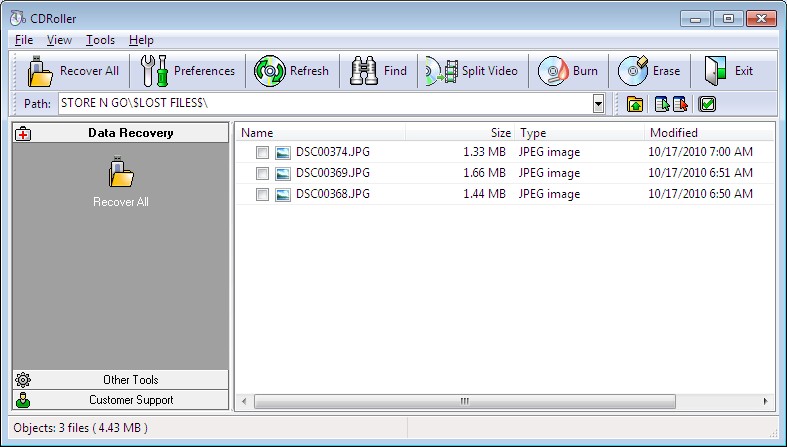

3. Find and recover the lost data. Simply browse the folders in the displayed partition. If you look for the deleted files, please open the $LOST FILES$ folder at first. You can use the View Image from the Tools menu in order to preview the selected pictures.





1. Do not save the files to the same drive you're recovering from.  This may overwrite the data that still need to be recovered.  For instance, if you recover data from flash card, do not save the data back to the same card !

2. To change drive (disk partition), use the Select drive... option from the File menu.


Creating image file.


An image file is an exact, byte-to-byte, copy (clone) of any drive (partition) displayed under CDRoller - Start Window. CDRoller can create image files for an entire disk, selected partition or logical drive. The created images can be added into the list of drives for Extended Data Recovery and then be processed like regular disks. Also, the images can be simply imported into all major forensic tools.

To create an image, just right click on the selected object under CDRoller - Start Window and then use the Create image in the next (pop-up) menu. For physical drive, you will be prompted to select whether an entire disk or only selected partition will be processed. If unreadable sectors are detected, CDRoller replaces each byte in the bad sector by E5h pattern, in order to maintain an internal image file structure.


Create disk image
